Mount Rainier

run mount-rainier-20261001T195322 · generator 0.1.0+24ebbbe-dirty · catalog lego-1x1-2026-10-01 · status complete

· variant

x1.5_sentinel2@2017-08-26_average_diffusion0.10

max height 148 plates = 473.6 mm · open whole-mountain 3D view

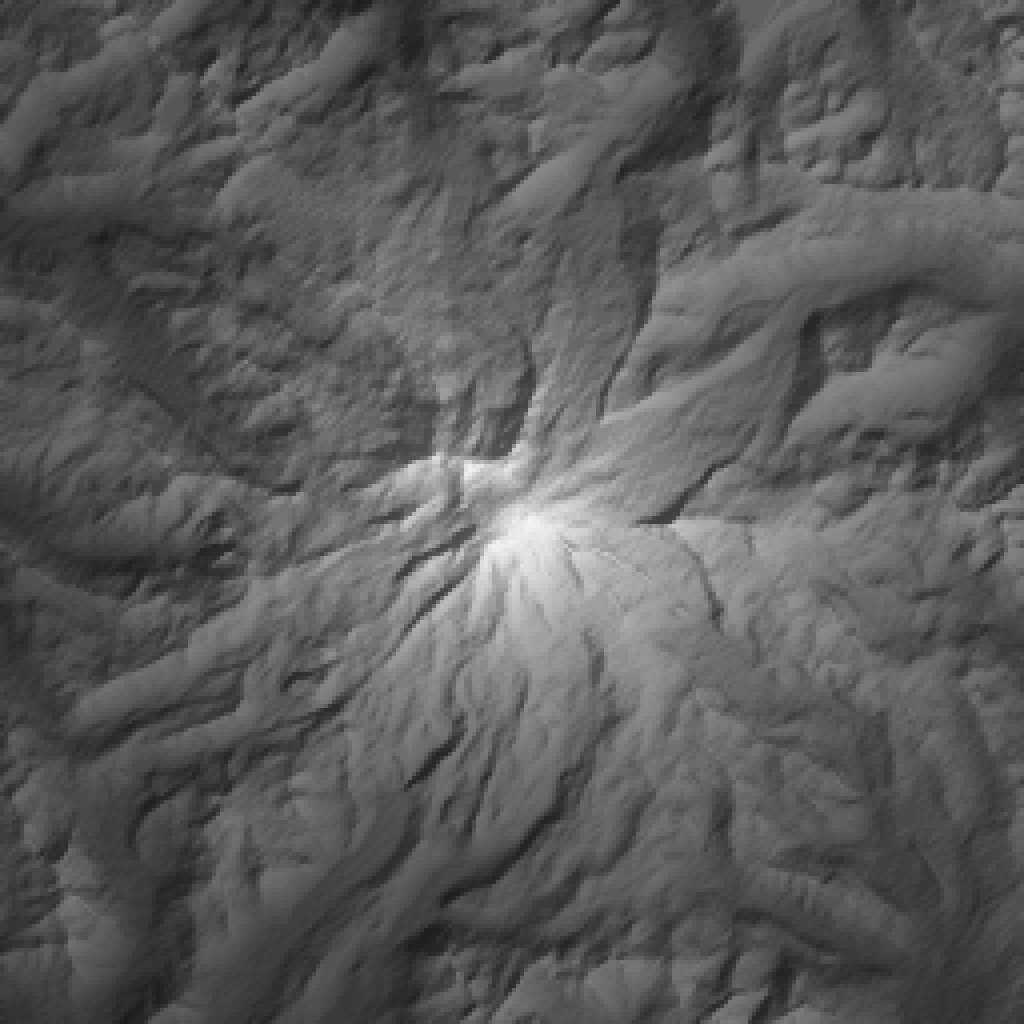

LEGO height (stepped, hillshaded)
LEGO height (stepped, hillshaded)

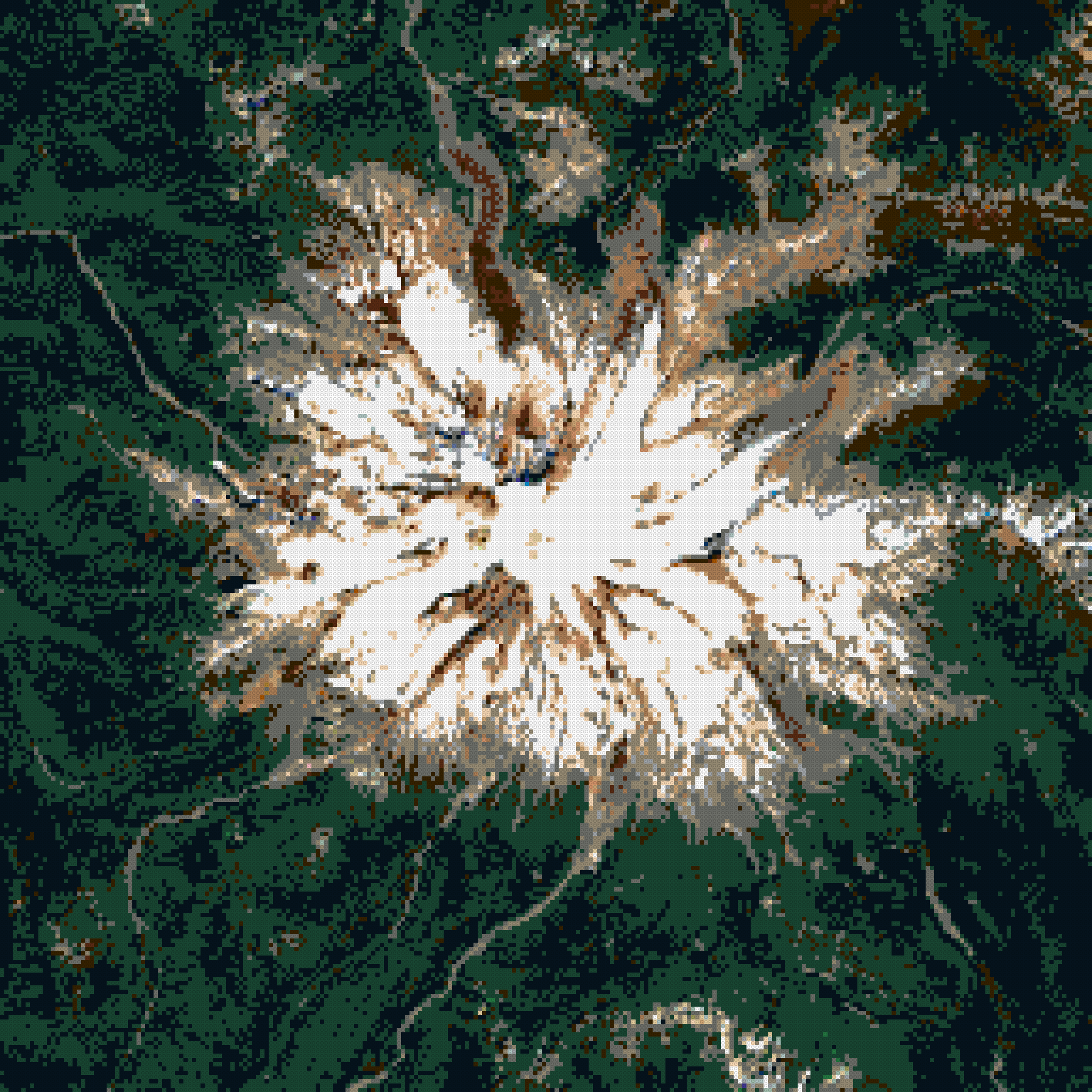

LEGO colors (1 block = 1 stud)
LEGO colors (1 block = 1 stud)
source imagery (sentinel2@2017-08-26)
source imagery (sentinel2@2017-08-26)

Summary

footprint2048.0 × 2048.0 mm (256 × 256 studs)
geographic area24.00 × 24.00 km, 93.75 m per stud, EPSG:26910
datum674.4 m (raw DEM min 665.7 m)
summit4381.0 m stud-mean at stud [127, 128] (source max 4392.4 m)
relief above datum3706.5 m
meters per plate (1×)37.500
max height x1.5148 plates / 473.6 mm
color distribution — x1.5_sentinel2@2017-08-26_average_diffusion0.10
LDraw 28820685 studs
LDraw 017081 studs
LDraw 727077 studs
LDraw 156991 studs
LDraw 284292 studs
LDraw 3083537 studs
LDraw 781585 studs
LDraw 841363 studs
LDraw 371822 studs
LDraw 71794 studs
LDraw 70547 studs
LDraw 19296 studs
LDraw 92182 studs
LDraw 323102 studs
LDraw 37841 studs
LDraw 8035 studs
LDraw 48418 studs
LDraw 33016 studs
LDraw 27215 studs
LDraw 214 studs
LDraw 37914 studs
LDraw 858 studs
LDraw 2125 studs
LDraw 2974 studs
LDraw 4304 studs
LDraw 313 studs
LDraw 3213 studs
LDraw 101 studs
LDraw 3261 studs

Sources

roleprovider / datasetdatelicense · attribution
elevationUSGS 3DEP
3DEPElevation (Bare Earth DEM Dynamic)		NonePublic domain
USGS 3D Elevation Program (3DEP)
imageryElement84 Earth Search
sentinel-2-l2a		2017-08-26Copernicus Sentinel data terms
Contains modified Copernicus Sentinel data 2017

Validation

PASScoverage_completenon-finite DEM px: 0; non-finite imagery px: 0
PASSdem_imagery_aligned2 grids share bounds EPSG:26910; max extent mismatch 0.000 m
PASSevery_stud_has_elevation65536 studs
PASSevery_stud_has_allowed_colorall colors in catalog
PASSno_terrain_below_datummin plates per exaggeration: {'x1.5': 0}
PASSquant_error_within_half_platemax |error| plates: {'x1.5': 0.5}
PASScatalog_colors_currently_produced29 colors used; not currently produced: []
PASSterrain_colors_plate_buildableevery used color is produced as a 1x1 plate
PASSsummit_positionDEM max in stud (127, 127); highest stud (127, 128); offset 1 stud(s)
PASSexaggeration_invariance1 exaggerations share footprint [(256, 256)] and one color array per color setting (colors are computed independently of exaggeration)
PASSviewer_written1 whole-mountain 3D viewer(s)
PASSldraw_valid:x1.5_sentinel2@2017-08-26_average_diffusion0.10195354 elements checked
PASSldraw_seams:x1.5_sentinel2@2017-08-26_average_diffusion0.10module files together equal the full model
manifest.json
{
 "schemaVersion": 1,
 "runId": "mount-rainier-20261001T195322",
 "status": "complete",
 "generatorVersion": "0.1.0+24ebbbe-dirty",
 "createdAt": "2026-10-01T19:53:25+00:00",
 "preset": {
  "id": "mount-rainier",
  "name": "Mount Rainier",
  "center": {
   "lat": 46.8523,
   "lon": -121.7603
  },
  "boundingBox": {
   "widthKm": 24,
   "heightKm": 24
  },
  "targetStudWidth": 256,
  "moduleStudSize": 64,
  "surfaceResolutionStuds": 1,
  "verticalExaggeration": 2,
  "datumMode": "surrounding-minimum",
  "viewpoints": [
   {
    "name": "Seattle",
    "bearingDeg": 333,
    "elevationDeg": 12
   },
   {
    "name": "Tacoma",
    "bearingDeg": 311,
    "elevationDeg": 12
   },
   {
    "name": "Sunrise",
    "bearingDeg": 50,
    "elevationDeg": 20
   },
   {
    "name": "Paradise",
    "bearingDeg": 164,
    "elevationDeg": 20
   }
  ]
 },
 "bounds": {
  "crs": "EPSG:26910",
  "minE": 582508.0,
  "minN": 5177497.0,
  "maxE": 606508.0,
  "maxN": 5201497.0,
  "metersPerStud": 93.75,
  "studWidth": 256,
  "studHeight": 256
 },
 "scale": {
  "metersPerPlateTrueScale": 37.5,
  "exaggerations": [
   1.5
  ]
 },
 "datum": {
  "mode": "surrounding-minimum",
  "elevationM": 674.4448315429687,
  "rawDemMinM": 665.722412109375
 },
 "sources": [
  {
   "role": "elevation",
   "provider": "USGS 3DEP",
   "dataset": "3DEPElevation (Bare Earth DEM Dynamic)",
   "sourceUrls": [
    "https://elevation.nationalmap.gov/arcgis/rest/services/3DEPElevation/ImageServer/exportImage"
   ],
   "itemIds": [],
   "acquisitionDate": null,
   "nativeResolutionM": 1.0,
   "analysisGridPx": 2560,
   "nativeCrs": "EPSG:26910",
   "license": "Public domain",
   "attribution": "USGS 3D Elevation Program (3DEP)",
   "cacheKeys": [
    "374a95871db8eb87778af7f823ec5471d4dfe9a8f3912d0af1d27c8a15d3a21e",
    "bc6b9b374a258f3ee4b28da2570ca6bc28157ac8af36118348a3d2cc2dce091e",
    "a3b29e5ed5db522f06da7f95ec27de8a0eeda5c65d374d677f2275628ca9c84c",
    "157f767013296b43234e52aab71839d4218f98ae913b2fe513103452dba067c3",
    "6de2945450d12e5c95f39c637e4a5b8c87d0d6fe7d3c851efc0b4d4085701439",
    "169f583475bc24e7978e1b3fc399ad80db7fecb6460f88c140dcbc160acf994d",
    "6e8b517f9191b35f3f14c0c6e97303c064d94f501d5b20d3b98daa92037560e9",
    "274088e46fb3fb7ead5fbc72ee689e8c91db7d96fbab1f9a53a2645926d08550",
    "f8c5c2fdd835dcddfd19f269a89ec083bce5387cb9949cb43b82e940c93dc6c3",
    "adca31b1f3262f11082b9e860c16405486ffff419da5e9f45f13994c1d760f0c",
    "461dce5adc7e23b2c43eb729be707a343826d95ce864f89bc04395dd7573b2af",
    "9f8bce72e30aa7e7e64c98f755f952f259a5e8ea9776b882bd0a1b5cb83caa8c",
    "312d88defb0e813a0245ea4bd8279a2832eee4036227041494ee7ede8e254c0e",
    "7321acce9ff6754e6570b500d0f3078971a0b9ce2e8377b799a80bfbe7f67dbd",
    "0a4dede3a10a05c76754e0e506b0ff7bcfd2b9360197e5d91b826a3d3e4ca4ad",
    "099d818c571503f36957782e2102b12d3e2df46a5c0bffcf56fde1013ff6a9af"
   ]
  },
  {
   "role": "imagery",
   "provider": "Element84 Earth Search",
   "dataset": "sentinel-2-l2a",
   "sourceUrls": [
    "https://sentinel-cogs.s3.us-west-2.amazonaws.com/sentinel-s2-l2a-cogs/10/T/ES/2017/8/S2B_10TES_20170826_0_L2A/TCI.tif",
    "https://sentinel-cogs.s3.us-west-2.amazonaws.com/sentinel-s2-l2a-cogs/10/T/ET/2017/8/S2B_10TET_20170826_0_L2A/TCI.tif",
    "https://sentinel-cogs.s3.us-west-2.amazonaws.com/sentinel-s2-l2a-cogs/10/T/FS/2017/8/S2B_10TFS_20170826_0_L2A/TCI.tif",
    "https://sentinel-cogs.s3.us-west-2.amazonaws.com/sentinel-s2-l2a-cogs/10/T/FT/2017/8/S2B_10TFT_20170826_0_L2A/TCI.tif"
   ],
   "itemIds": [
    "S2B_10TES_20170826_0_L2A",
    "S2B_10TET_20170826_0_L2A",
    "S2B_10TFS_20170826_0_L2A",
    "S2B_10TFT_20170826_0_L2A"
   ],
   "acquisitionDate": "2017-08-26",
   "nativeResolutionM": 10.0,
   "analysisGridPx": 2560,
   "nativeCrs": "EPSG:32610",
   "license": "Copernicus Sentinel data terms",
   "attribution": "Contains modified Copernicus Sentinel data 2017",
   "cacheKeys": [
    "3b1d3a88fca5648e02fdd6cc6a9d20ca7ae5e5d8ea471519fac3dab1d1def278",
    "d5d6446d30646ec33b66ad9242267e8c1a8f278a455547a16bbd0317a0495975",
    "7febb8e144019e30eaf4bf7551d80e4361ced0158c8623e4c2d0cdddcc91ce2e",
    "344e323304154dbb06f3bceba6040c6aa21ad7a05fcf1a80eb73217feea8a377",
    "795e09544f18c15756ba60526f08f9dfce65f87c9e40ca88fc1d79544eedc302",
    "a966061585cf82fa8aa1c91788ff69592aa81d8506303271cc8ade4cc938ac10",
    "330dd3062a1ac92eb30e72b74dffcab0a6b12f34f0c0a92fa6a2370050d365d6",
    "1119a6ab022c912a0f8ab22f96ffbfa085870aa99d7649d1f257354a78ca6ddd"
   ],
   "imageryKey": "sentinel2",
   "notes": [
    "tiles ['10TES', '10TET', '10TFS', '10TFT']; WGS84 UTM -> NAD83 UTM datum offset (~1-2 m) treated as zero (datumOffsetNote); SCL cloud/shadow fraction 2.3498% (accepted limit 10.00%, owner override via --max-cloud)"
   ]
  }
 ],
 "catalog": {
  "version": "lego-1x1-2026-10-01",
  "sha256": "313a874bc2e3b9a52333454ffbe36a7d309261fd5b5deb0fcd496c8ef2922d2d",
  "terrainPalette": {
   "rule": "colors currently produced as 1x1 plate (3024)",
   "size": 47,
   "excluded": []
  }
 },
 "variants": [
  {
   "key": "x1.5_sentinel2@2017-08-26_average_diffusion0.10",
   "verticalExaggeration": 1.5,
   "color": {
    "imagerySource": "sentinel2",
    "imageryDate": "2017-08-26",
    "sampling": "average",
    "assignment": "diffusion",
    "diffusionStrength": 0.1
   },
   "metrics": {
    "maxHeightPlates": 148,
    "maxHeightMm": 473.6,
    "colorDistribution": {
     "0": 17081,
     "2": 14,
     "10": 1,
     "15": 6991,
     "19": 296,
     "28": 4292,
     "31": 3,
     "70": 547,
     "71": 794,
     "72": 7077,
     "78": 1585,
     "80": 35,
     "84": 1363,
     "85": 8,
     "92": 182,
     "212": 5,
     "272": 15,
     "288": 20685,
     "297": 4,
     "308": 3537,
     "321": 3,
     "323": 102,
     "326": 1,
     "330": 16,
     "371": 822,
     "378": 41,
     "379": 14,
     "430": 4,
     "484": 18
    }
   }
  }
 ],
 "summary": {
  "geographicWidthM": 24000.0,
  "geographicHeightM": 24000.0,
  "physicalWidthMm": 2048.0,
  "physicalDepthMm": 2048.0,
  "summitStud": [
   127,
   128
  ],
  "summitElevationM": 4380.98908203125,
  "summitSourceElevationM": 4392.380859375,
  "reliefM": 3706.5442504882817
 },
 "outputs": {
  "canonical": {
   "path": "canonical.npz",
   "sha256": "55fa6ecf6a7cf781670bfffa146e6edbec535eb5464d157349acaf2f9c35cb40"
  },
  "preview:height-x1.5": {
   "path": "./height-x1.5.png",
   "sha256": "af32591634275def0965bf5bfa28730b9c0f42e35c8731c31a4dd4bb21d3c469"
  },
  "preview:color-sentinel2@2017-08-26_average_diffusion0.10": {
   "path": "./color-sentinel2@2017-08-26_average_diffusion0.10.png",
   "sha256": "7530bc449a481320c59f1bbf0ae1991c9a5bc1465448b36998987c64056fe43f"
  },
  "preview:imagery-sentinel2@2017-08-26": {
   "path": "./imagery-sentinel2@2017-08-26.png",
   "sha256": "4addf6758d924287fd83d0e433c7e0ddb370bd454e59d4b2f26a5233c404d2ba"
  },
  "viewer:x1.5_sentinel2@2017-08-26_average_diffusion0.10": {
   "path": "viewer/x1.5_sentinel2@2017-08-26_average_diffusion0.10.html",
   "sha256": "518de3ff1fe8d6628eebdec23d3b5d21f2e54d54ac415bd77e907d6b413e8013"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_A1": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_A1.ldr",
   "sha256": "ac60e1bc5502cd223a34feae488969f937e87ade2b7a92034d8edc28c88213c1"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_A2": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_A2.ldr",
   "sha256": "da82a848a92d8c185095f17e53297657e3dbdce3f61601c1f1b0acbf5639f918"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_A3": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_A3.ldr",
   "sha256": "e3354119b507b7c252d0d4bbfa8bbcba72715c94ec52fa931b61792281bae08f"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_A4": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_A4.ldr",
   "sha256": "e520780d6d68ed3214c26f7110c482362ba570500abb27098c2e5262f6d97746"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_B1": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_B1.ldr",
   "sha256": "632cb9d1ad65969c017c192284273287341d47cc9df2bc847b548f9ba253ae8e"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_B2": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_B2.ldr",
   "sha256": "c0b16aba63d884036db20bbd0fca7e2f1c35439ac25205e165ae4ab6c81c5b98"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_B3": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_B3.ldr",
   "sha256": "84792a0a024b849503217162d1559cebc4481bb9c322a74bce3958c43d66ee2e"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_B4": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_B4.ldr",
   "sha256": "e961562f9c6131e5c4d9a5ef385e48400a398824d9aefe43eb67f08cdd420d8d"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_C1": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_C1.ldr",
   "sha256": "ce541469193d424bc4b7284139eb803dc8e4382a428fb199579915592dd0f4bd"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_C2": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_C2.ldr",
   "sha256": "5d4132c17a93c51cc3e3ed02730986508b36f6120be70b65b25bc459616cbb06"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_C3": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_C3.ldr",
   "sha256": "c5646b8422706a0b31c41a4267ba3935e661926180128d1aab5432f7ccb5102b"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_C4": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_C4.ldr",
   "sha256": "70a4f421fa8d0f7e6b7fffb333eaad97887696ad023bf0e1397daabb32b7670a"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_D1": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_D1.ldr",
   "sha256": "377a5245d5350c1bb4053c235f0550098451ea7531d0ceb69d900ea4b3987b33"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_D2": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_D2.ldr",
   "sha256": "23556d6583fde162197d91918d3b6fe839d1bea57c01f6d3ada4536ae7ddab94"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_D3": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_D3.ldr",
   "sha256": "f889d00357324b87bf0dcf17fc6131cd6402c67e4b76a30ce9bf80aa48c66b6d"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:Module_D4": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Module_D4.ldr",
   "sha256": "d05c78581c4c45c2ba119a5bc592b2c55557c04059a9e7691f61e01c735509ba"
  },
  "ldraw:x1.5_sentinel2@2017-08-26_average_diffusion0.10:full": {
   "path": "ldraw/x1.5_sentinel2@2017-08-26_average_diffusion0.10/Mount_Rainier.mpd",
   "sha256": "21ba711a5254a939c1750d870b0a0531677f23a3e2c1bc104767c0cbe042c0f3"
  }
 },
 "validation": [
  {
   "check": "coverage_complete",
   "passed": true,
   "detail": "non-finite DEM px: 0; non-finite imagery px: 0"
  },
  {
   "check": "dem_imagery_aligned",
   "passed": true,
   "detail": "2 grids share bounds EPSG:26910; max extent mismatch 0.000 m"
  },
  {
   "check": "every_stud_has_elevation",
   "passed": true,
   "detail": "65536 studs"
  },
  {
   "check": "every_stud_has_allowed_color",
   "passed": true,
   "detail": "all colors in catalog"
  },
  {
   "check": "no_terrain_below_datum",
   "passed": true,
   "detail": "min plates per exaggeration: {'x1.5': 0}"
  },
  {
   "check": "quant_error_within_half_plate",
   "passed": true,
   "detail": "max |error| plates: {'x1.5': 0.5}"
  },
  {
   "check": "catalog_colors_currently_produced",
   "passed": true,
   "detail": "29 colors used; not currently produced: []"
  },
  {
   "check": "terrain_colors_plate_buildable",
   "passed": true,
   "detail": "every used color is produced as a 1x1 plate"
  },
  {
   "check": "summit_position",
   "passed": true,
   "detail": "DEM max in stud (127, 127); highest stud (127, 128); offset 1 stud(s)"
  },
  {
   "check": "exaggeration_invariance",
   "passed": true,
   "detail": "1 exaggerations share footprint [(256, 256)] and one color array per color setting (colors are computed independently of exaggeration)"
  },
  {
   "check": "viewer_written",
   "passed": true,
   "detail": "1 whole-mountain 3D viewer(s)"
  },
  {
   "check": "ldraw_valid:x1.5_sentinel2@2017-08-26_average_diffusion0.10",
   "passed": true,
   "detail": "195354 elements checked"
  },
  {
   "check": "ldraw_seams:x1.5_sentinel2@2017-08-26_average_diffusion0.10",
   "passed": true,
   "detail": "module files together equal the full model"
  }
 ],
 "exportMode": "both",
 "ldrawCounts": {
  "x1.5_sentinel2@2017-08-26_average_diffusion0.10": {
   "Module_A1": 6421,
   "Module_A2": 6170,
   "Module_A3": 6124,
   "Module_A4": 6041,
   "Module_B1": 5750,
   "Module_B2": 5917,
   "Module_B3": 5750,
   "Module_B4": 5750,
   "Module_C1": 6100,
   "Module_C2": 5741,
   "Module_C3": 5796,
   "Module_C4": 6253,
   "Module_D1": 7207,
   "Module_D2": 6318,
   "Module_D3": 6171,
   "Module_D4": 6168,
   "Mount_Rainier": 97677
  }
 }
}
